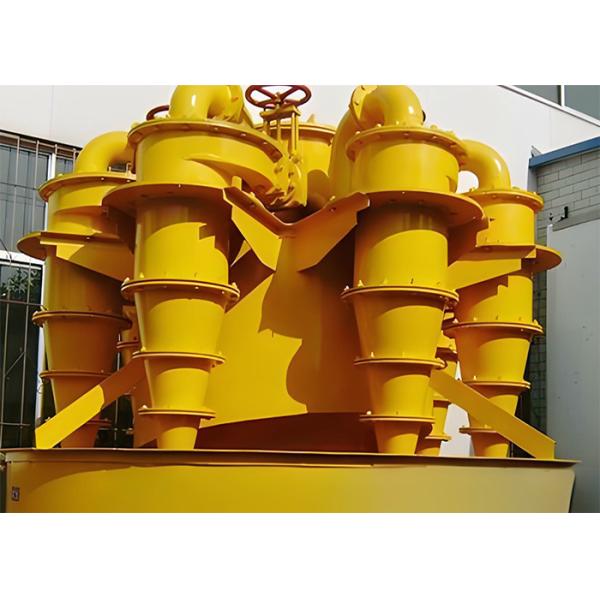

Advanced Technology Durability Desanding Hydrocyclone Water Treatment Classifier Devise
The desanding hydrocyclone is available in various area to cater to your specific water treatment requirements.
Adopt vertical volute axis direction type shaft with spiral down channel structure, smooth inner surface, ensure bigger dispersion of slurry. Better classifying efficiency of hydrocyclone, less abrasion, changeable inner sleeve, easy installation, convenience maintenance.
According to the requirement of technical processing of client, our engineer can calculate a suitable diameter of overflow pipe and discharge outlet after testing work. If the diameter is not a normal one, it can be customized.
| Simple structure |
| Easy maintenance |
| Big processing capacity |
| Small footprint |
| Long life span |
| Anti-resistant |
| Inner Diameter (mm) | Overflow Pipe (mm) | Underflow Pipe (mm) | Cone Angle (°) | Feeding Pressure (MPa) | Capacity (m3/h) | Particle Size (μm) |
| 200 | 40.50.55.65 | 16.20.24.28.32 | 15,20 | 0.05-0.4 | 25-40 | 40-100 30-100 |
| 150 | 30.35.40.45.50 | 8.10.12.14. 16.18.20.22 | 8.15.20 | 0.05-0.4 | 11-20 | 30-74 20-74 |
| 125 | 25.30.35.40 | 8.10.12.14. 16.18 | 7.15 | 0.05-0.4 | 8-15 | 74-200 |
The desanding hydrocyclone is used in various scenarios, including:
UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.
Type of Packing:
| Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case. |
| Packed with fumigation package |
| Packed in plastic lorap, double bister and jute rope |
Q: What is UNIVEE desanding hydrocyclone?
A: UNIVEE desanding hydrocyclone is a device that separates solids from liquids or removes dirt and other impurities from water.
Q: How does UNIVEE desanding hydrocyclone?
A: UNIVEE desanding hydrocyclone works by using centrifugal force to separate particles from water. The water is fed into the hydrocyclone and spins around at high speed, causing the particles to separate from the water and collect at the bottom of the unit.
Q: What are the benefits of using UNIVEE desanding hydrocyclone?
A: UNIVEE desanding hydrocyclone is an efficient and cost-effective way to remove dirt and impurities from water. It can be used in a variety of applications, including industrial processes, wastewater treatment, and agriculture.
Q: Is UNIVEE desanding hydrocyclone easy to install?
A: Yes, UNIVEE desanding hydrocyclone is easy to install and can be used in conjunction with other water treatment systems to improve overall efficiency.
